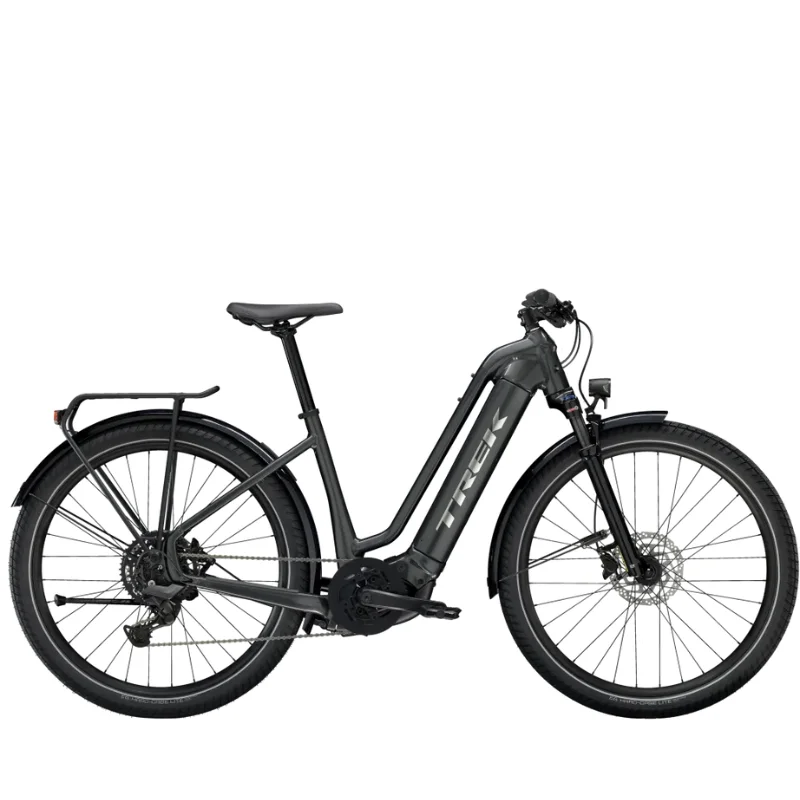

2026 Trek Allant + 7 LS
The Trek Allant+ 7 Lowstep stands as an award-winning performance e-bike tailored for those who desire a blend of style, durability, and the comfort of suspension in their daily commuting and riding endeavors. Equipped with the highly responsive Bosch smart system, top-quality components, and a multitude of meticulously considered design features, this e-bike represents a sophisticated solution for everyday urban navigation.
FRAMESET
| Frame | High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 QR |
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
| Max compatible fork travel | 63mm |
WEIGHT
| Weight | M - 25.50 kg / 56.22 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter |
Shimano U4000, 9-speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank |
Size: S, M Size: L, |
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 48T |
WHEELS
| Hub Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front |
114x5 mm QR |
| Hub Rear |
Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm QR |
| Skewer Rear |
Bontrager Switch thru-axle, removable lever |
| Rim |
Size: 49, 52, 54, 56, 58, 61 Size: 49, 52, 54, 56, 58, 61 |
| Spokes |
14 g stainless steel, black |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max. Chainring Size | See service manual |
COMPONENTS
| Saddle |
Size: 49, 52 Size: 54, 56, 58, 61 |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar |
Size: S, M Size: L |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem |
Size: S Size: M Size: L |
| Brake | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt,180 mm |
| Rotor Size | Max brake rotor sizes: 180 mm front and rear |
