1x Medium Only!

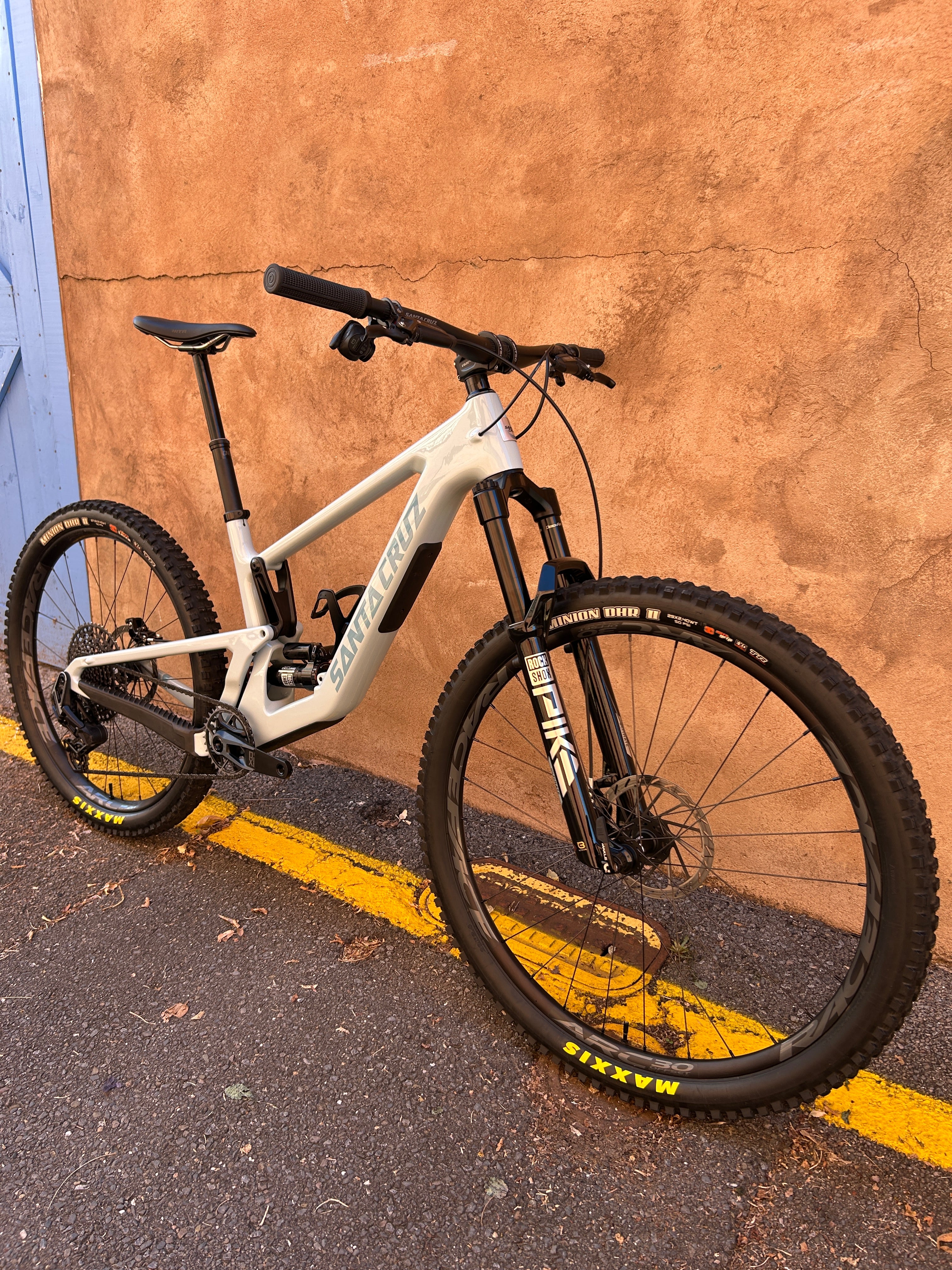

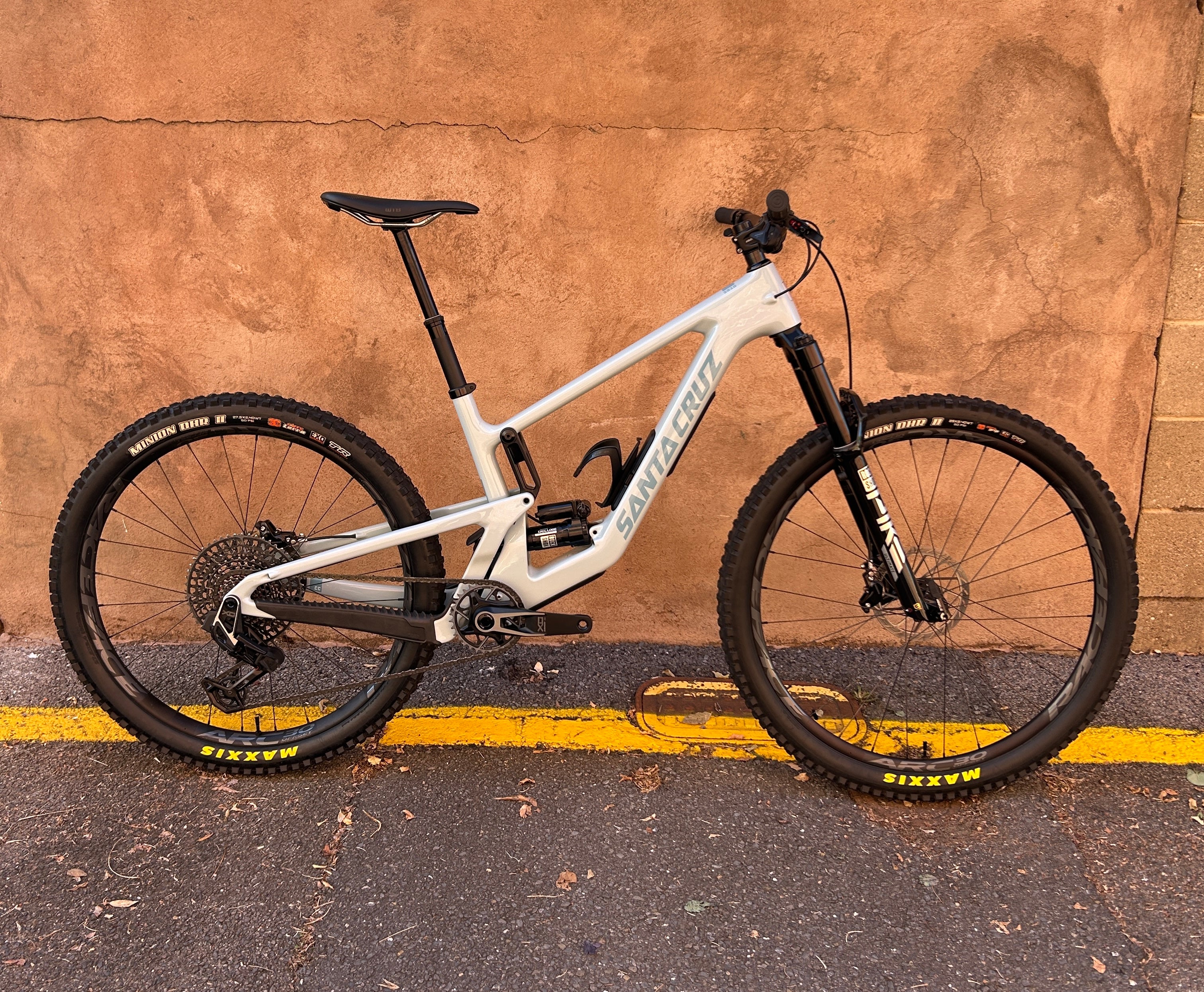

The 5010 is not just “the little bike” of our range. It makes even the most mundane trails feel like they’re loaded with features to hop, skip and jump over. It’s like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

Frame
Material	Carbon CC
Travel	130mm
Weight	30.85 lbs / 13.99 kg
Wheel Size	MX
Suspension
Fork	RockShox Pike Ultimate, 140mm
Shock	RockShox Super Deluxe Ultimate, 210x50
Drivetrain
Bottom Bracket	SRAM DUB 73mm MTB Wide BB
Cassette	SRAM X0 Eagle T-Type, 10-52t
Chain	SRAM X0 Eagle T-Type, Flattop, 12spd
Crankset	SRAM X0 Eagle DUB T-Type Crankset, 32t
Rear Derailleur	SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter	SRAM AXS Pod Controller Rocker Paddle
Brakes
Brakes	SRAM Code Silver Stealth
Front Rotor	SRAM HS2 180mm
Rear Rotor	SRAM HS2 180mm
Cockpit
Grips / Bar Tape	Santa Cruz Bicycles House Grips
Handlebars	Santa Cruz 20 Carbon Bar, 760mm
Headset	Cane Creek 40 IS Integrated Headset
Saddle	WTB Silverado Medium Fusion, CroMo SL
Seatpost	OneUp Dropper Post, 31.6
Stem	Burgtec Enduro MK3, 42mm
Wheels
Front Rim	Reserve 30\|SL AL 6069 -or- Raceface ARC 30
Front Hub	DT Swiss 350, 15x110, 6-Bolt, 28h
Front Tire	Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
Rear Rim	Reserve 30\|SL AL 6069 -or- Raceface ARC 30
Rear Hub	DT Swiss 350, 12x148, XD, 6-Bolt, 28h, DEG 90T
Rear Tire	Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Specs
Bottom Bracket Shell	73mm Threaded
Rear Brake Mount	PM 180mm
Shock Length	210mm
Fork Compatibility	140mm
Fork Offset	44mm
Headset	Integrated (IS41/52)
Max Chainring Size	34t
Max Tire Clearance May vary according to tire and rim model	2.5"
Seat Clamp Diameter	36.4mm
Seat Post Diameter	31.6mm
Shock Bushing Size Front	30x8
Shock Bushing Size Rear	30x8 (bearing compatible)
Shock Stroke	50mm
Suspension System	VPP
Water Bottle Mounts	1
