In It to Pin It

Just call it the “sweet spot” – the best of both worlds. Big-bike power and ride time, with lightweight-bike agility and handling. In other words, exactly what e-mtb riders everywhere have been waiting for. Moterra SL might just be the most fun mountain bike we’ve ever made.

Model Description

With full-power thrills and lightweight agility, Moterra SL 1 is built to go faster, ride harder, and deliver the goods on all kinds of terrain. Our lightest, full-power eMTB chassis has 150mm of Proportional Response Tuned Suspension and FlexPivot chainstays to maximize traction without the weight. A custom tuned Shimano’s EP801 drive unit fires off 85Nm of torque the second your legs demand it, while the 601Wh battery delivers tons of range in a light package. Full Fox Factory suspension and rugged DT Swiss XM 1700 wheels track the terrain with unwavering grip, SRAM's XO AXS group cracks off crisp wireless shifts, and the mullet wheelset—29” up front, 27.5” in the back— balances party with precision.

What it's for

Fast, fluid, ridiculously fun trail riding on everything from the steep and techy to the fast and flowy.

Highlights

Light and durable, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics
Top-of-the-line Fox Factory suspension – 160mm Factory Float 36 fork & Factory Float X rear shock
SRAM’s penultimate e-MTB group - XO AXS wireless 12-speed shifting, plus e*thirteen Race Carbon cranks & Magura MT7 hydraulic disc brakes
Light and tough, DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
OneUp V3 dropper post & Hollowgram SAVE vibration-reducing carbon handlebar
Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery

Specs

Details

Platform
Moterra SL
Model Name
Moterra SL 1
Model Code
C65195U

Frameset

Frame
Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
Fork
Fox Float Factory 36, 160mm travel, Grip X2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros Adjustable Angle (1.2°)
Rear Shock
Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm

E-System

Drive Unit
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Display
Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

Drivetrain

Rear Derailleur
SRAM XO Eagle AXS, T-Type
Shifters
SRAM AXS POD Controller
Chain
SRAM XO Eagle, T-Type, 12-speed
Crank
e*thirteen e*spec Plus, 160mm (S/M), 165mm (L/XL), 34T
Rear Cogs
SRAM XO Eagle, 10-52, T-Type, 12-speed

Brakes

Brakes
Magura MT7 4-piston hydraulic disc, 203/203mm Storm HC 6-bolt rotors
Brake Levers
Magura MT7 HCW hydraulic disc

Price

Collections

E-Mountain Bikes

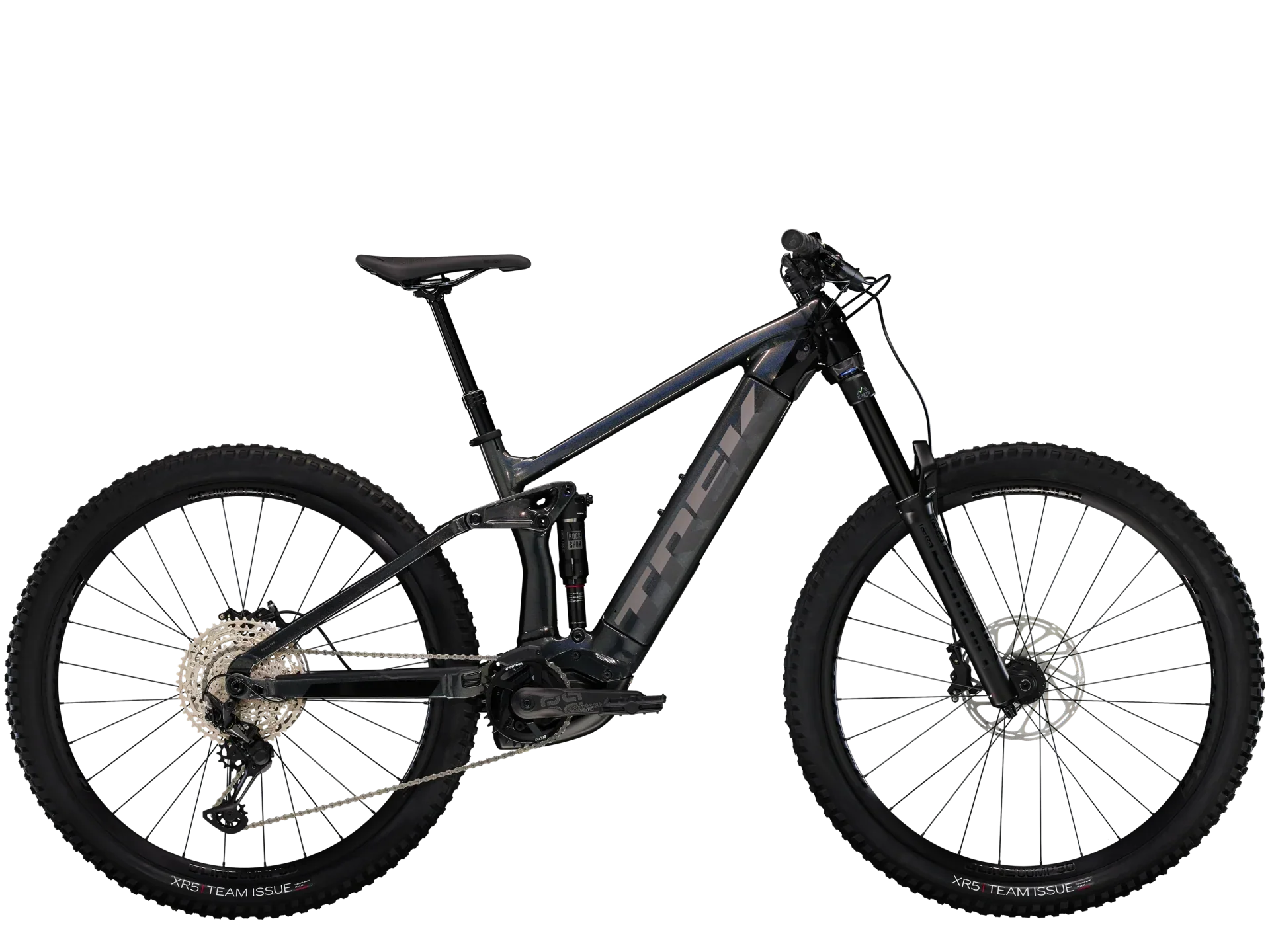

2024 Trek Rail 7 Gen 3
